Multipurpose amplifier - ZeShengPro Amplifier | Guangzhou Amplifier

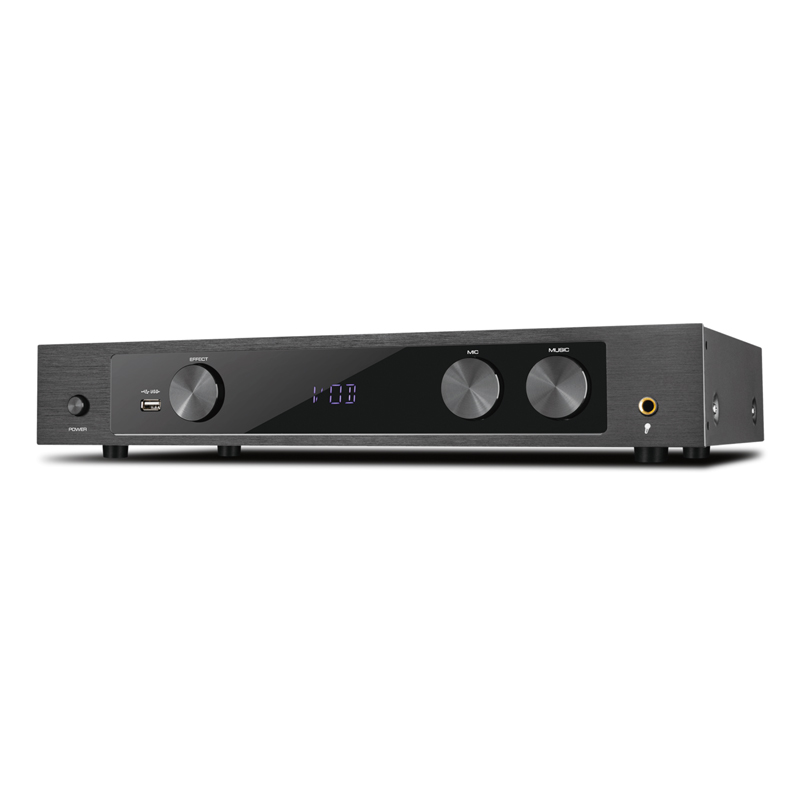

K3

2*100W DSP Multi-Purpose Amplifier

1. DSP multi-purpose power amplifier with toroidal transformer;
2. 1.5U aluminum alloy panel, DSP pre-amp effect with CLASS D post-amp;
3. Music and vocals are independently configured with 3-segment parametric equalization adjustment;
4. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
5. Provide 4 microphone inputs, optical coaxial inputs, and 15m infrared remote control, which is convenient for engineering use;
6. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
7. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
8. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice more rich and natural;
9. Professional-grade full electronic volume control, music pitch change and one-key factory reset
10. Perfect overheating, short circuit, DC and other speaker protection functions.
11. Equipped with temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the long-term work;

1. DSP multi-purpose power amplifier with toroidal transformer;
2. 1.5U aluminum alloy panel, DSP pre-amp effect with CLASS D post-amp;
3. Music and vocals are independently configured with 3-segment parametric equalization adjustment;
4. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
5. Provide 4 microphone inputs, optical coaxial inputs, and 15m infrared remote control, which is convenient for engineering use;
6. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
7. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
8. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice more rich and natural;
9. Professional-grade full electronic volume control, music pitch change and one-key factory reset
10. Perfect overheating, short circuit, DC and other speaker protection functions.
11. Equipped with temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the long-term work;

ModelK3
Stereo power 8Ω2*100W
Number of channels2
Total harmonic distortion0.05%
Frequency response20Hz ~ 20KHz (±0.5dB)
Signal-to-noise ratio≥98dB
Enter sensitivityMusic 250mv / Mic 30mv
Input Impedance (Unbalanced/Balanced)22KΩ
Net weight of a single unit5.5KG
Gross weight of a single unit7KG
Single fuselage size430x220x65 (mm)
Packing size of a single unit480x340x110 (mm)
Two units in a pack size495x350x250 (mm)

  • ModelK3
    Stereo power 8Ω2*100W
    Number of channels2
    Total harmonic distortion0.05%
    Frequency response20Hz ~ 20KHz (±0.5dB)
    Signal-to-noise ratio≥98dB
    Enter sensitivityMusic 250mv / Mic 30mv
    Input Impedance (Unbalanced/Balanced)22KΩ
    Net weight of a single unit5.5KG
    Gross weight of a single unit7KG
    Single fuselage size430x220x65 (mm)
    Packing size of a single unit480x340x110 (mm)
    Two units in a pack size495x350x250 (mm)
