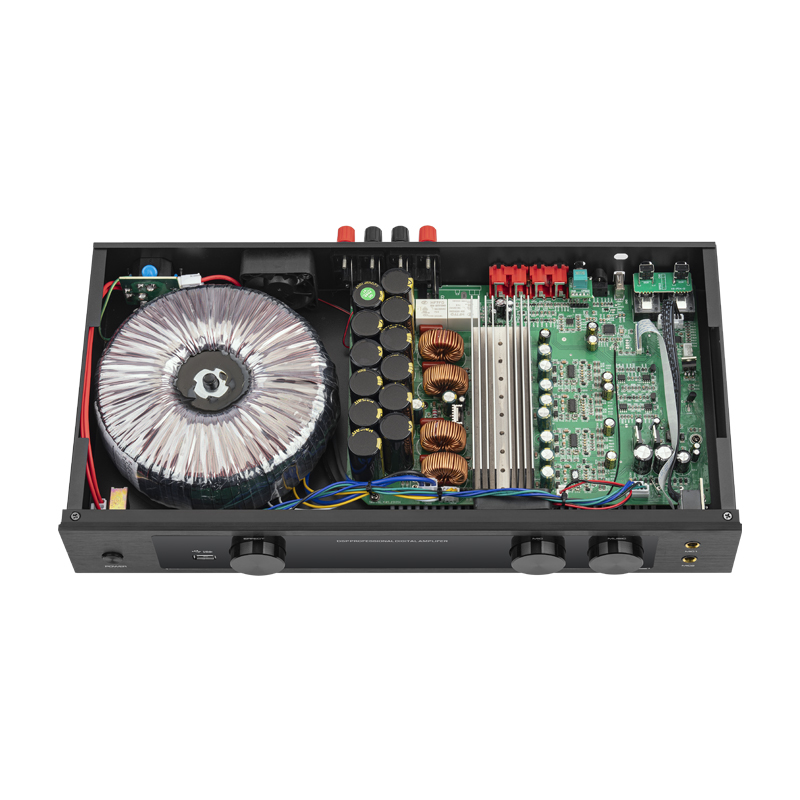

1. DSP multi-purpose power amplifier with toroidal transformer;

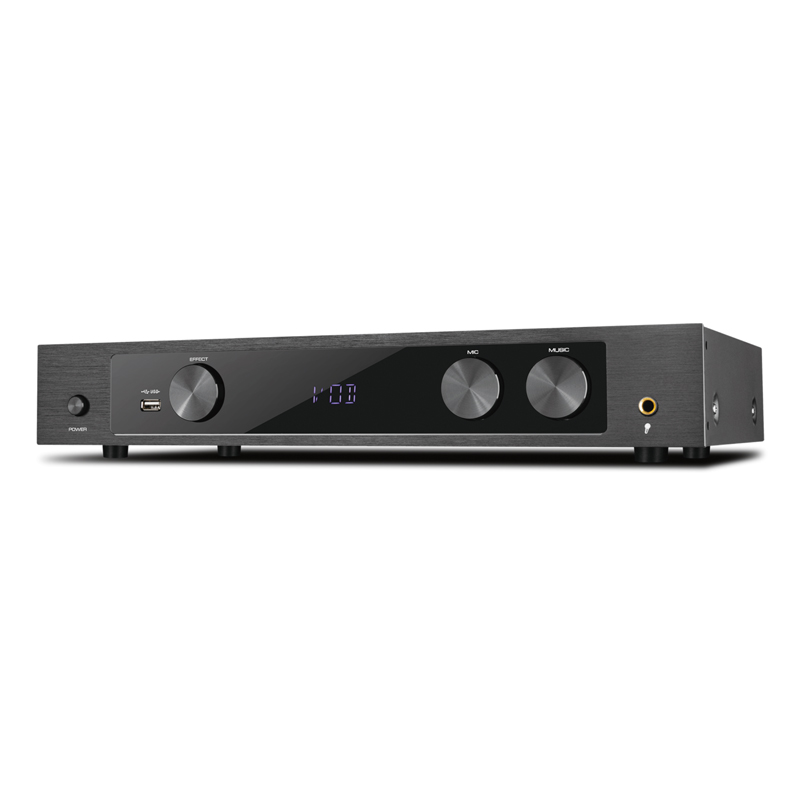

2. 1.5U aluminum alloy panel, DSP pre-amp effect with CLASS D post-amp;
3. Music and vocals are independently configured with 3-segment parametric equalization adjustment;
4. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
5. Provide 4 microphone inputs, optical coaxial inputs, and 15m infrared remote control, which is convenient for engineering use;

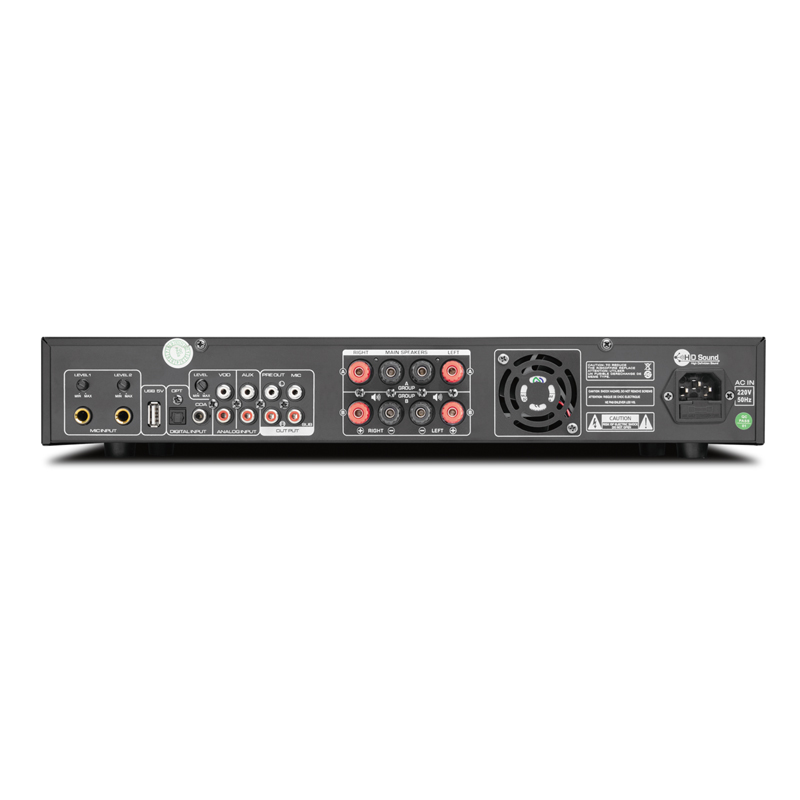

6. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
7. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
8. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice more rich and natural;
9. Professional-grade full electronic volume control, music pitch change and one-key factory reset
10. Perfect overheating, short circuit, DC and other speaker protection functions.
11. Equipped with temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the long-term work;
1. DSP multi-purpose power amplifier with toroidal transformer;
2. 1.5U aluminum alloy panel, DSP pre-amp effect with CLASS D post-amp;
3. Music and vocals are independently configured with 3-segment parametric equalization adjustment;
4. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
5. Provide 4 microphone inputs, optical coaxial inputs, and 15m infrared remote control, which is convenient for engineering use;
6. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
7. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
8. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice more rich and natural;
9. Professional-grade full electronic volume control, music pitch change and one-key factory reset
10. Perfect overheating, short circuit, DC and other speaker protection functions.
11. Equipped with temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the long-term work;
Model | K12 |
Stereo power 8Ω | 2*600W |
Number of channels | 2 |
Total harmonic distortion | 0.05% |
Frequency response | 20Hz ~ 20KHz (±0.5dB) |
Signal-to-noise ratio | ≥98dB |
Enter sensitivity | Music 250mv / Mic 30mv |
Input Impedance (Unbalanced/Balanced) | 22KΩ |
Net weight of a single unit | 9KG |
Gross weight of a single unit | 10.5KG |
Single fuselage size | 430x220x65 (mm) |
Packing size of a single unit | 480x340x110 (mm) |
Two units in a pack size | 495x350x250 (mm) |
Model | K12 |
Stereo power 8Ω | 2*600W |
Number of channels | 2 |
Total harmonic distortion | 0.05% |
Frequency response | 20Hz ~ 20KHz (±0.5dB) |
Signal-to-noise ratio | ≥98dB |
Enter sensitivity | Music 250mv / Mic 30mv |
Input Impedance (Unbalanced/Balanced) | 22KΩ |
Net weight of a single unit | 9KG |
Gross weight of a single unit | 10.5KG |
Single fuselage size | 430x220x65 (mm) |
Packing size of a single unit | 480x340x110 (mm) |
Two units in a pack size | 495x350x250 (mm) |
