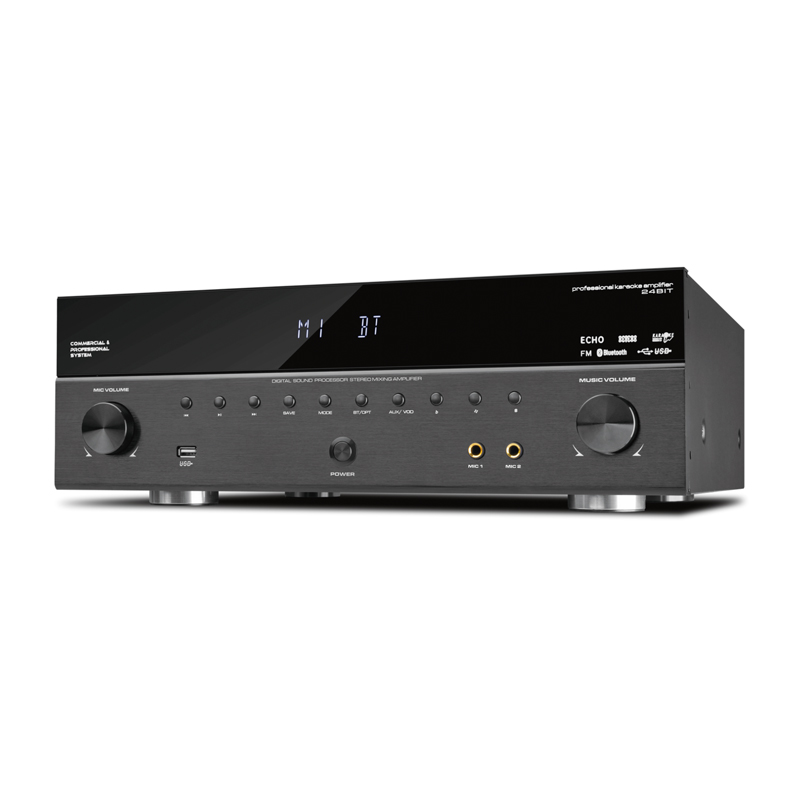

Multipurpose amplifier - ZeShengPro Amplifier | Guangzhou Amplifier

KS-350

2*350W DSP Multi-Purpose Amplifier

1. DSP multi-purpose power amplifier with toroidal transformer;
2. 3U aluminum alloy panel, DSP pre-amp + CLASS D post-amp;
3. Music and vocals are independently configured with 8-segment parametric equalization adjustment;
4. Configure 3 kinds of effect storage and modification functions;
5. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
6. Provide four microphone input (optional 48V phantom power supply), optical coaxial input, and 15m infrared remote control for easy engineering use;
7. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
8. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
9. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice richer and more natural;
10. Professional-grade full electronic volume control, music pitch change and one-key factory reset
11. Perfect overheating, overcurrent, short circuit and other speaker protection functions.
12. Equipped with a temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the needs of long-term work;

1. DSP multi-purpose power amplifier with toroidal transformer;
2. 3U aluminum alloy panel, DSP pre-amp + CLASS D post-amp;
3. Music and vocals are independently configured with 8-segment parametric equalization adjustment;
4. Configure 3 kinds of effect storage and modification functions;
5. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
6. Provide four microphone input (optional 48V phantom power supply), optical coaxial input, and 15m infrared remote control for easy engineering use;
7. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
8. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
9. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice richer and more natural;
10. Professional-grade full electronic volume control, music pitch change and one-key factory reset
11. Perfect overheating, overcurrent, short circuit and other speaker protection functions.
12. Equipped with a temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the needs of long-term work;

ModelKS-350
Stereo power 8Ω2*350W
Number of channels2
Total harmonic distortion0.05%
Frequency response20Hz ~ 20KHz (±0.5dB)
Signal-to-noise ratio≥98dB
Enter sensitivityMusic 350mv / Mic 30mv
Input Impedance (Unbalanced/Balanced)22KΩ
Net weight of a single unit9KG
Gross weight of a single unit10.5KG
Single fuselage size430x355x133 (mm)
Packing size of a single unit505x480x200 (mm)
Two units in a pack size520x500x410 (mm)

  • ModelKS-350
    Stereo power 8Ω2*350W
    Number of channels2
    Total harmonic distortion0.05%
    Frequency response20Hz ~ 20KHz (±0.5dB)
    Signal-to-noise ratio≥98dB
    Enter sensitivityMusic 350mv / Mic 30mv
    Input Impedance (Unbalanced/Balanced)22KΩ
    Net weight of a single unit9KG
    Gross weight of a single unit10.5KG
    Single fuselage size430x355x133 (mm)
    Packing size of a single unit505x480x200 (mm)
    Two units in a pack size520x500x410 (mm)
