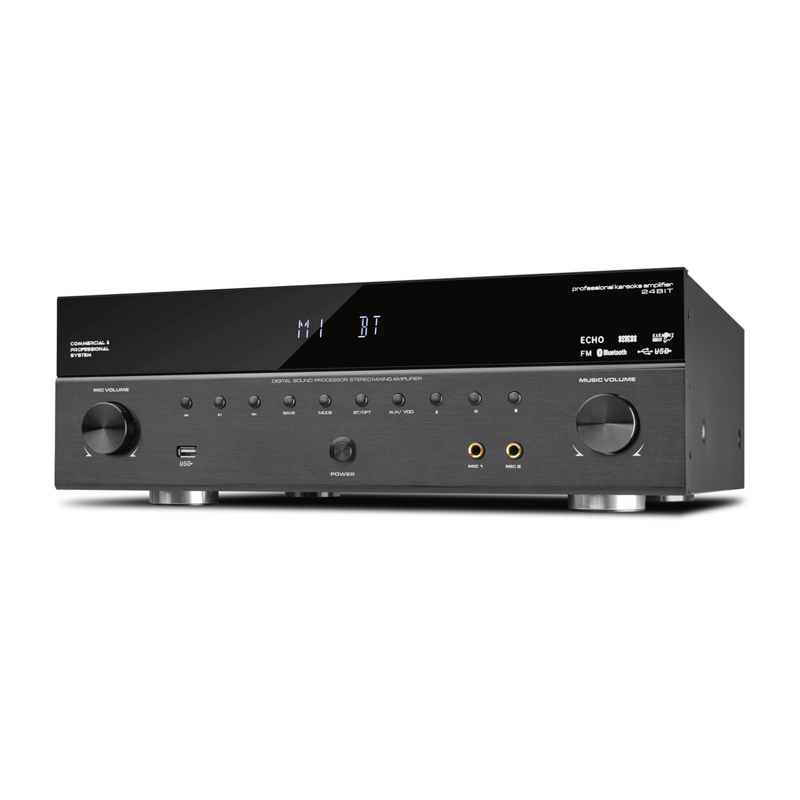

1. DSP multi-purpose power amplifier with toroidal transformer;
2. 3U aluminum alloy panel, DSP pre-amp + CLASS D post-amp;
3. Music and vocals are independently configured with 8-segment parametric equalization adjustment;
4. Configure 3 kinds of effect storage and modification functions;
5. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
6. Provide four microphone input (optional 48V phantom power supply), optical coaxial input, and 15m infrared remote control for easy engineering use;
7. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
8. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
9. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice richer and more natural;
10. Professional-grade full electronic volume control, music pitch change and one-key factory reset
11. Perfect overheating, overcurrent, short circuit and other speaker protection functions.
12. Equipped with a temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the needs of long-term work;
1. DSP multi-purpose power amplifier with toroidal transformer;
2. 3U aluminum alloy panel, DSP pre-amp + CLASS D post-amp;
3. Music and vocals are independently configured with 8-segment parametric equalization adjustment;
4. Configure 3 kinds of effect storage and modification functions;
5. Equipped with 5.0 Bluetooth and USB player interface, which can play lossless music;
6. Provide four microphone input (optional 48V phantom power supply), optical coaxial input, and 15m infrared remote control for easy engineering use;

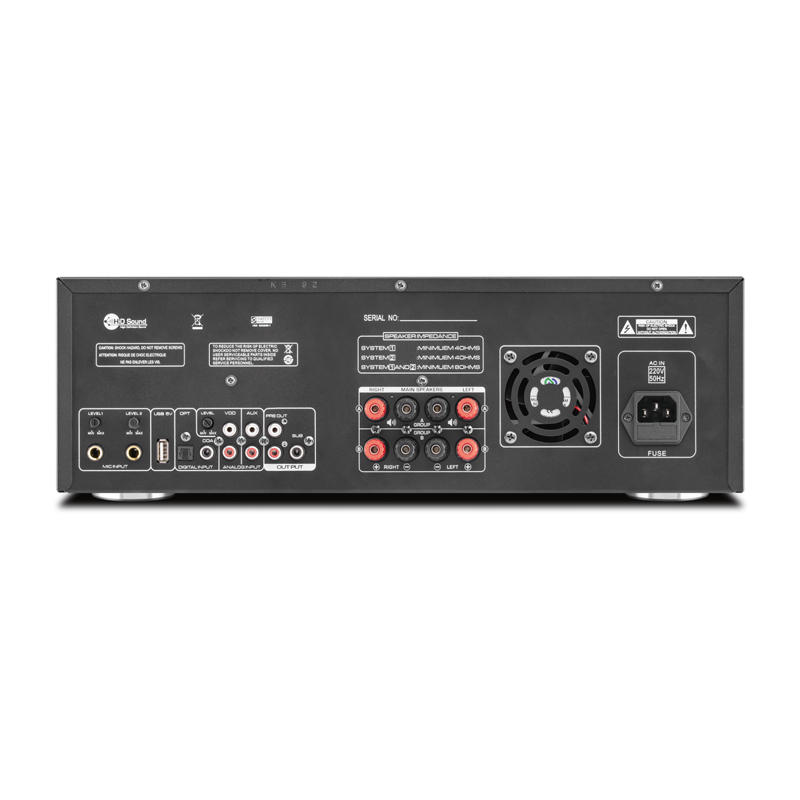

7. SUB subwoofer output interface, pure music output interface, 5V1A power interface;
8. Built-in microphone automatic noise suppression circuit and feedback simulation circuit;
9. Double reverberation, reverberation, damping, pre-delay and other functions make the singing voice richer and more natural;
10. Professional-grade full electronic volume control, music pitch change and one-key factory reset
11. Perfect overheating, overcurrent, short circuit and other speaker protection functions.
12. Equipped with a temperature-controlled cooling fan to strengthen the heat dissipation of the machine and meet the needs of long-term work;
Model | KS-650 |
Stereo power 8Ω | 2*650W |
Number of channels | 2 |
Total harmonic distortion | 0.05% |
Frequency response | 20Hz ~ 20KHz (±0.5dB) |
Signal-to-noise ratio | ≥98dB |
Enter sensitivity | Music 350mv / Mic 30mv |
Input Impedance (Unbalanced/Balanced) | 22KΩ |
Net weight of a single unit | 10KG |
Gross weight of a single unit | 11.5KG |
Single fuselage size | 430x355x133 (mm) |
Packing size of a single unit | 505x480x200 (mm) |
Two units in a pack size | 520x500x410 (mm) |
Model | KS-650 |
Stereo power 8Ω | 2*650W |
Number of channels | 2 |
Total harmonic distortion | 0.05% |
Frequency response | 20Hz ~ 20KHz (±0.5dB) |
Signal-to-noise ratio | ≥98dB |
Enter sensitivity | Music 350mv / Mic 30mv |
Input Impedance (Unbalanced/Balanced) | 22KΩ |
Net weight of a single unit | 10KG |
Gross weight of a single unit | 11.5KG |
Single fuselage size | 430x355x133 (mm) |
Packing size of a single unit | 505x480x200 (mm) |
Two units in a pack size | 520x500x410 (mm) |
名称 | 类型 | 大小 | 地址 |
---|---|---|---|
KS_AMPLIFIER | 2MB | 下载 |
