1. The perfect combination of movie watching and karaoke, 5.1Dolby Atmos/DTS/AC3 cinema decoding technology, high-fidelity class AB analog large dynamic power amplification circuit, all-round improvement of sound quality, timbre, low distortion, high signal-to-noise ratio;
2. Intelligent sound field correction, humanized algorithm, in line with auditory characteristics, ultra-low noise, lower than conventional;

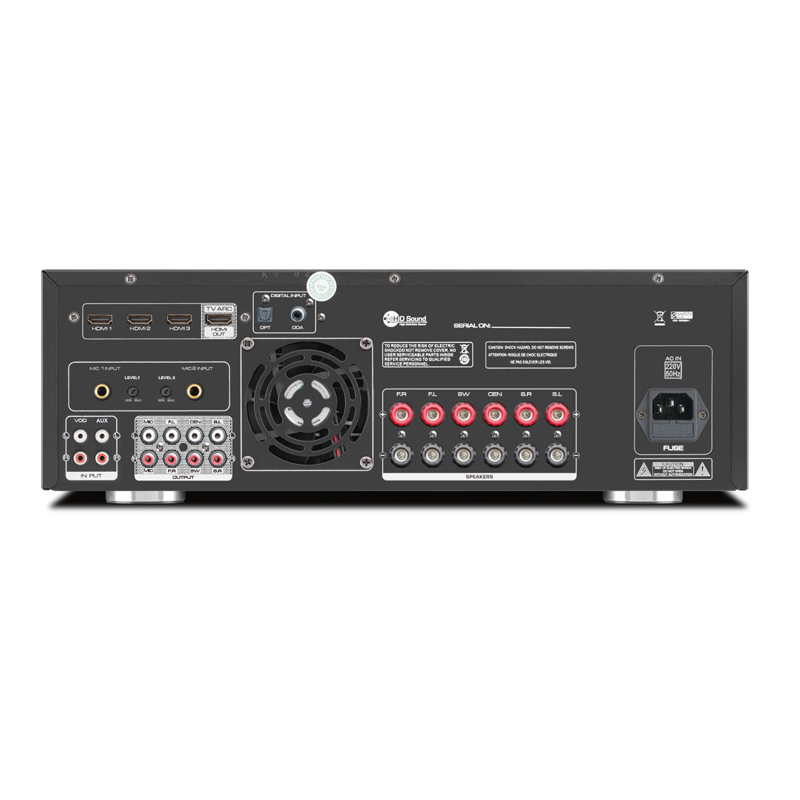

3. HDMI 2.0, 3 in and 1 out, optical coaxial plus two analog signal inputs, 4 microphone inputs, customized audio DSP chips, the effect is greatly improved;
4. All-round protection circuit to provide system stability;
1. The perfect combination of movie watching and karaoke, 5.1Dolby Atmos/DTS/AC3 cinema decoding technology, high-fidelity class AB analog large dynamic power amplification circuit, all-round improvement of sound quality, timbre, low distortion, high signal-to-noise ratio;
2. Intelligent sound field correction, humanized algorithm, in line with auditory characteristics, ultra-low noise, lower than conventional;
3. HDMI 2.0, 3 in and 1 out, optical coaxial plus two analog signal inputs, 4 microphone inputs, customized audio DSP chips, the effect is greatly improved;
4. All-round protection circuit to provide system stability;
| Model | AVK5100 |
| 5.1 channel power 8Ω | 5*100W 1*200W |
| Total harmonic distortion | 0.05% |
| Frequency response | 20Hz ~ 20KHz (±0.5dB) |
| Signal-to-noise ratio | ≥98dB |
| Enter sensitivity | Music 250mv / Mic 30mv |
| Input Impedance (Unbalanced/Balanced) | 22KΩ |
| Net weight of a single unit | 13KG |
| Gross weight of a single unit | 14.5KG |
| Single fuselage size | 430x355x133 (mm) |
| Packing size of a single unit | 505x480x200 (mm) |
| Two units in a pack size | 520x500x410 (mm) |
| Model | AVK5100 |
| 5.1 channel power 8Ω | 5*100W 1*200W |
| Total harmonic distortion | 0.05% |
| Frequency response | 20Hz ~ 20KHz (±0.5dB) |
| Signal-to-noise ratio | ≥98dB |
| Enter sensitivity | Music 250mv / Mic 30mv |
| Input Impedance (Unbalanced/Balanced) | 22KΩ |
| Net weight of a single unit | 13KG |
| Gross weight of a single unit | 14.5KG |
| Single fuselage size | 430x355x133 (mm) |
| Packing size of a single unit | 505x480x200 (mm) |
| Two units in a pack size | 520x500x410 (mm) |
| 名称 | 类型 | 大小 | 地址 |
|---|---|---|---|
| AVK5100 | 下载 |
